NORTH QUEENSLAND INDEPENDANT FUEL SERVICES

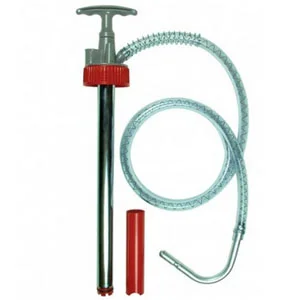

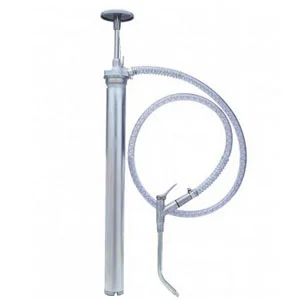

20 Litre Gear Oil Pump

CA465G2

• Easy downstroke displacement

• Approximately 14 strokes per litre

• 1.5 metre anti-kink hose

• Fitted with anti-drip nozzle and drain back nozzle holder

60 Litre Spring Operated Oil Pump

CA469G

• Approximately 2 strokes per litre

• 1.5 metre anti-kink hose

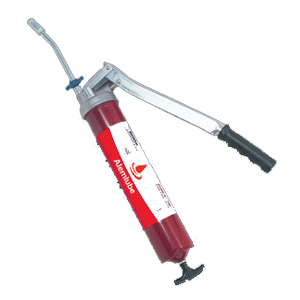

450g Lever Action Grease Gun

• Develops grease pressures up to 12,000psi

• Coarse thread on barrel assembly eliminates the possibility of cross threading during cartridge changeover

• Delivers up to 1.6g of grease per stroke

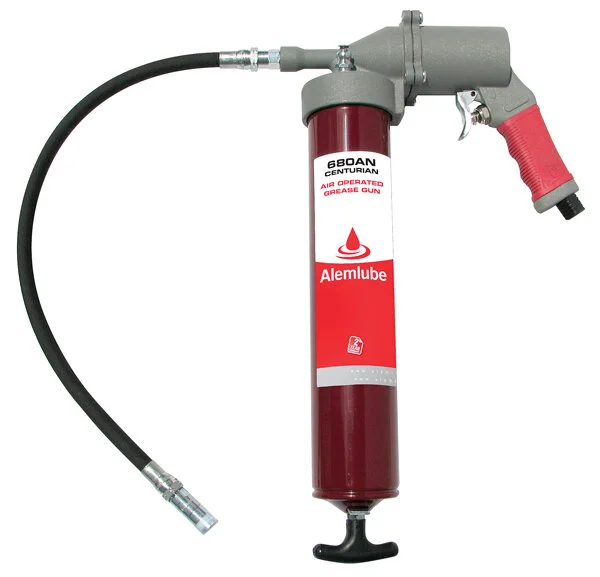

450g Air Operated Grease Gun

• Develops grease pressure up to 3,290psi

• Pressure ratio of 40:1

• Delivers up to 182g per minute

Digital Oil Nozzle 1/2"

• Digital oil gun

• ½" oil gun with swivel

• Handles fluids such as: motor oil, gear oil, ATF, etc.

• Meter fluid range of between 1 and 35 litres per minute

• Maximum pressure 750psi

Automatic Diesel Fuel Nozzle

• Auto shut-off

• 3/4” BSP thread

• Flow rate up to 60 litres per minute

• Not suitable for gravity feed applications

1:1 Air Operated Oil Pump Kit

DITI1701003KIT

• 4 metres of oil hose

• Manual oil control gun with anti-drip nozzle

• Air regulator, gauge, lubricator and filter

• Adjustable 2" bung adaptor

• Suitable for oils up to SAE 120

Air Operated Grease Kit - 60kg

DITI1700524

• Mobile kit for 60 kg drums

• Working pressure up to 8700psi

• 50:1 pump, trolley, follower plate and drum cover, 4 metres of 1/4” connection hose, Z swivel and control gun

60 Litre Drum Trolley

CA972

• 60 litre trolley

• Solid steel construction

• Lightweight and easy to use.

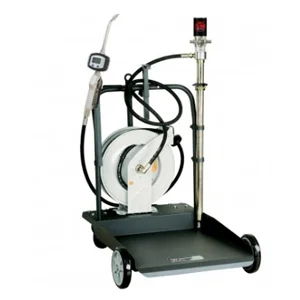

3:1 205L Air Operated Portable Oil Transfer Kit + Hose Reel

DITI1700233

• Mobile unit for 205 litre drums

• Drum trolley with heavy duty wheels and castors ensures high mobility and efficiency

EL Series Air Hose Reel

HR40040

• High quality impact & UV resistant polypropylene covers

• 12m x 12mm ID hybrid polymer hose & 0.9m lead in hose

• 1/2” BSP(m) inlet and outlet threads

• Maximum working pressure of 300psi

240V Electric Cable Reel

CR30050

• 240V, maximum 10amp

• Supplied with 20m of 3 x 1.5mm2 cable

• Maximum power when coiled is 1,000W, when uncoiled 2,000W

• Thermal overload protection

• Automatic spring rewind mechanism

Oil Hose Reel

501298

• Dual pedestal construction resists angular hose pull

• Maximum working pressure of 1,100psi

• 1/2” BSPT(m) inlet

• 1/2” BSPT(m) outlet

• Can be wall, ceiling, floor or tank mounted

Diesel Hose Reel 1

DHR1508615

• Antistatic black rubber hose 15m - 1” inlet-outlet F1”G - M1”G

• Galvanized connection

• Swiveling joint of 90deg

• Hose reel capacity 90L/min

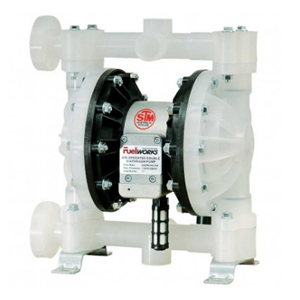

Air Operated Diaphragm Pump - Polypropylene 1"

DITI17151201

• 90 litres per minute

• 1" BSP inlet/outlet

• ¼" air inlet

• Polypropylene construction

Air Operated Diaphragm Pump - Aluminium 2”

DQBY50AAB

• Transfers high volumes of fluids from drums or tanks

• Suitable for oil, diesel, coolant, ATF, waste oil and water

• 100psi

2-Post Electro-Hydraulic Clear Floor Hoist

KPH370.45

• Three stage short arms and two stage long arms provide asymmetric lifting of vans and off-road vehicles

• Maximum height of 4,065mm or 4,165mm

• Includes top limit switch safety bar, door protectors, 4WD spacers and spacer holders

• Lifting capacity of 4,500 kg

4-Post Wheel Alignment Hoist with Jacking Beams

AA404PA-WF

• 4 Post hoist designed for precise wheel alignment procedures and general under vehicle service operations

• Heavy Duty lifting capacity of 4,000 kg

• Integrated Jacking beams x 2

• Overall height of 4,704mm

• Turntable recesses with cover plates
